Name: 9000mm Length Pallet Flow Conveyor
Brand: pengya
Price: 1 USD

Brand Name : pengya

Model Number : PCC60

Certification : ISO

Place of Origin : shanghai

MOQ : one unit

Payment Terms : T/T,

Price : Please Contact Us For The Price

Packaging Details : wood

Delivery Time : about week days

Supply Ability : For more than a week

Contact Now

Type 01 PCC60 length 1500-9000mm aluminium profile 200w compressors NO.60 Pallet Chain Flow

200V PCL500 1500-12000mm tray chain roller conveyer

Tray conveyor special chain roller conveyor,When the chain conveyor is not available, please use the chain roller conveyor.

Advantages:

The adoption of aluminum profile perfectly realizes the indispensable rigidity in the process of tray transmission.

Wheel bearing low noise type. (PCL PAC PZP general)

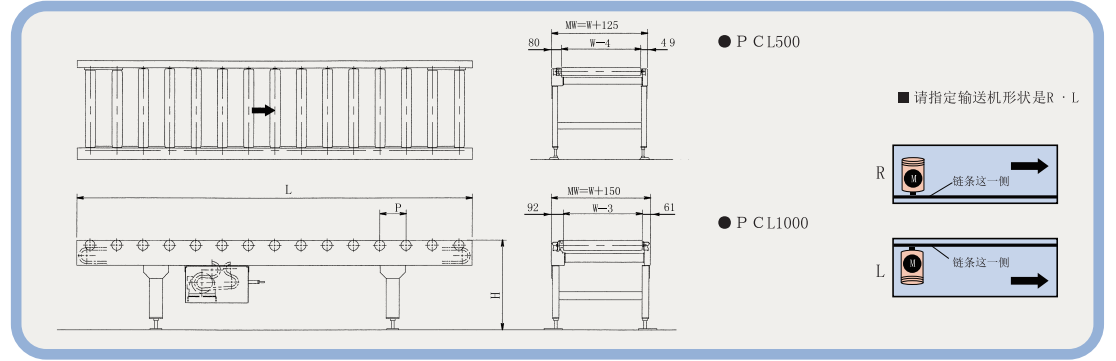

List of Specifications

Pallet China Live Roller Flow
Pallet China Live Roller Flow
model	PCL500	PCL1000
Can be carrying amount	500kg/m	1000kg/m
Roller size) outside diameter > thickness)	60.5*t2.3mm	76.3*t3.8mm
The shaft	12mm Round the length	17mm Round the length
bearing	Low noise type	Low noise type
Sprocket teeth (chain * number of teeth)	NO.50*8 A single	NO.60*9 A single
Fuselage width (outside pivot · outside fuselage)	w+125mm	w+150mm
Roller width W	600`1200mm	800·1500mm
Actual width dimensions of roller	W-4mm	w-3mm
Roller pitch P	75-100-150mm	100-15-200mm
Fuselage length L(multiple tooth spacing)	1500-1200mm	1500(p200的cases1600)·1200mm
Fuselage high H (FL· roller transfer surface)	570`1200mm(Adjust the+-50mm)	630`1200mm(Adjust the+-50mm)
The motor capacity	0.4.0.75.1.5kw
Move to speed	5`15m/min(1m/minper) Pay attention to In the case of 1.5kW下PCL500.PCL 1000Don't can5-6m/minoperation
The power supply	three-phase 200v

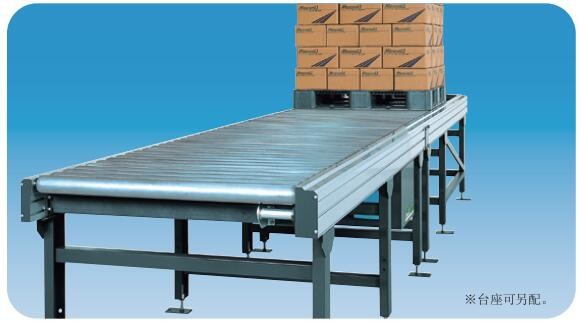

9000mm Length Pallet Flow Conveyor

Order sample

PCL1000

W1000

P100

-L8000

H600

0.75Kw

15m/min

60Hz

Accessories selection
